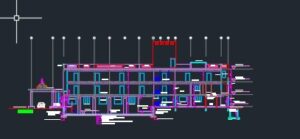

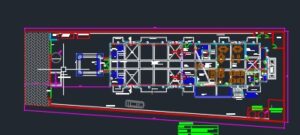

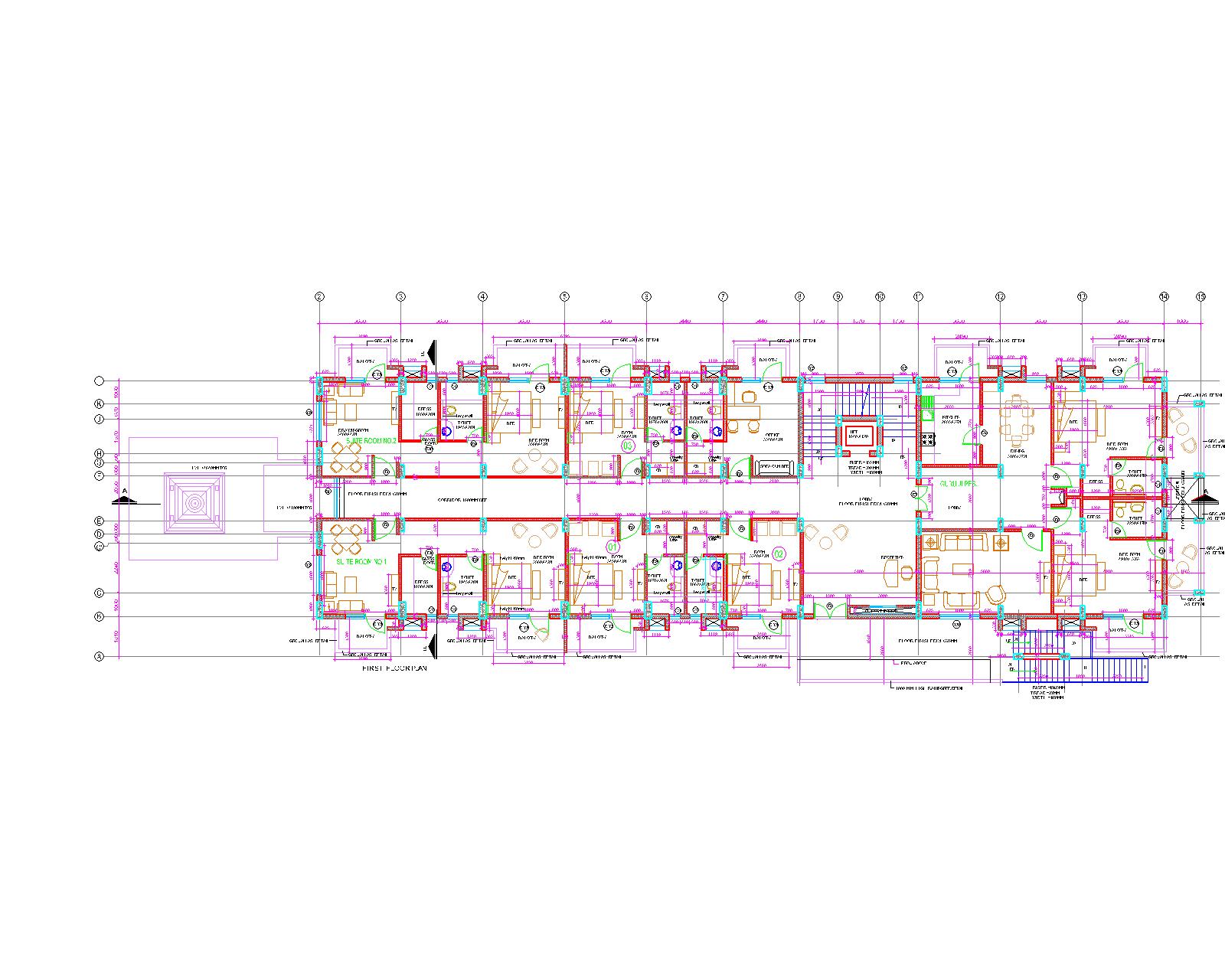

Ashram building .Dwg AutoCAD file
An AutoCAD file most commonly refers to a file with a
.dwg extension, which is the native format for storing 2D and 3D design data created with AutoCAD software. Other related AutoCAD file types include .dwt, .dws, and .dxf. Common AutoCAD file types
DWG (Drawing) file
The primary file type used by , it contains all the information of a drawing,
including layers, blocks, and objects
- Use: The default file type for saving and sharing AutoCAD drawings.
- Compatibility: While newer versions of AutoCAD can open older DWG files, older versions cannot open DWG files from a newer release.
- Proprietary format: DWG is a proprietary format owned by Autodesk, though some other CAD programs can also support it.
DXF (Drawing Exchange Format) file
This is an open-source ASCII text-based file format used for interoperability between different CAD software.
- Use: Sharing drawing data with non-AutoCAD users or other software that may not have native DWG support.
- Versus DWG: Because it’s plain text, a DXF file is typically larger than a compressed
